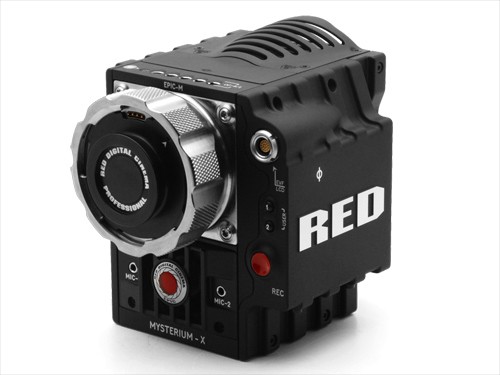

RED Epic M - Basic Package

back to High Definition > RED Cameras

RED Epic M - Basic Package
The name is not an overstatement. The much anticipated addition to the RED family is the answer to the professional's wildest dreams and exists as the most sophisticated and capable camera ever engineered and built. In a package one third the size of a RED ONE, resides a 5K Mysterium-X™ sensor and a 27 layer ASIC, the most advanced processor of its type in the world, enabling EPIC to capture up to 120 frames per second, each frame at full 14MP resolution. EPIC is engineered to be a DSMC™ (Digital Still & Motion Camera), a camera that excels in both worlds ... by design. Providing native dynamic range of over 13 stops and resolution that exceeds 35 mm motion picture film, this is the camera of the epoch. Add to that RED's newly developed HDRx™ extended dynamic range technology and EPIC boasts an amazing dynamic range of up to 18 stops. Purpose-built for perfect multi-camera synchronization, EPIC comes to market at a time when 3D capture requires the sophistication of a new generation of innovative technology. EPIC, very simply, is epic.

Package INCLUDES:
RED EPIC BODY (PL OR EF MOUNT) INCLUDES SIDE SSD AND TOP HANDLE
4-128GB SSD (W/CASE)
5" TOUCH SCREEN (WITH 2 CABLES)
V-MOUNT ADAPTER
4-RED BRICK V MOUNT BATTERIES
1-VMOUNT DUAL BRICK CHARGER
VIEWFACTOR CAGE WITH LW 15MM SUPPORT
REDMOTE (INCLUDES MOUNT AND D-TAP POWER)
SIDE-HANDLE
A-BOX WITH 2-XLR INPUTS
2-RED XLR AUDIO CABLES
2-SYNC CABLES
1-WIRED REMOTE ON OFF (INCLUDES 2-25' BNC)
2-RED SSD READERS (ESATA/FW800/400 USB 2.0 WITH CABLES)
ELEMENT TECHNICA HYBRID BRIDGE PLATE (WITH 19MM AND 15MM SUPPORT)
1-12" SLIDING DOVETAIL
15MM RODS (9" AND 18")
1-HOMBRE RAIN COVER MADE FOR RED EPIC
LATEST RELEASE SOFTWARE INSTALLED
IN 2-PELICAN CASES

Specifications:

SENSOR     14 MEGAPIXEL MYSTERIUM-X™

PIXEL ARRAY     5120 (h) x 2700 (v)

S/N RATIO     66db

DYNAMIC RANGE     13.5 stops, up to 18 stops with HDRx™

MAX IMAGE AREA     5120 (h) x 2700 (v)

LENS COVERAGE     27.7mm (h) x 14.6mm (v) x 31.4 mm (d)

DEPTH OF FIELD     Equivalent to S35mm (Motion) / APS-H (Still) lenses
Equivalent to 16mm (Motion) lens in 2K RAW

ACQUISITION FORMATS     5K RAW (Full Frame, 2:1, 2.4:1 and Anamorphic 2:1)
4.5K RAW (2.4:1)
4K RAW (16:9, HD, 2:1 and Anamorphic 2:1)
3K RAW (16:9, 2:1 and Anamorphic 2:1)
2K RAW (16:9, 2:1 and Anamorphic 2:1)
1080p RGB (16:9)
720p RGB (16:9)

PROJECT FRAME RATES     23.98, 24, 25, 29.97, 48, 50, 59.94 fps, all resolutions

DELIVERY FORMATS*     4K : DPX, TIFF, OpenEXR (RED RAY via optional encoder)
2K : DPX, TIFF, OpenEXR (RED RAY via optional encoder)
1080p RGB or 4:2:2, 720p 4:2:2 : Quicktime, JPEG
Avid AAF, MXF. 1080p 4.2.0, 720p 4:2:0 : H.264, .MP4

PROGRAM OUTPUT     HD-SDI Clean Feed
2K RGB, 1080p RGB or 4:2:2, 720p 4:2:2
SMPTE Timecode, HANC Metadata, 24-bit 48Khz Audio

MONITOR OUTPUT     HD-SDI and HDMI with Frame Guides and Look Around
2K RGB, 1080p RGB or 4:2:2, 720p RGB or 4:2:2
SMPTE Timecode, HANC Metadata, 24-bit 48Khz Audio

DIGITAL MEDIA     REDFLASH (CF) Module : (8, 16GB Media)
REDFLASH (SSD) Module : (64, 128, 256GB Media)

REDCODE™     12 and 16-bit RAW : RC25 – 250 Quality Levels
1-120 fps 5K, 4.5K, 4K
1-180 fps 3K
1-225 fps 2K

AUDIO     2 channel, uncompressed, 24 bit, 48KHz.
Optional 4 channel, and AES / EBU digital audio.

MONITORING OPTIONS     RED LCD 5″ Touchscreen Display
BOMB EVF™ High Definition Viewfinder

REMOTE CONTROL     Wireless, Ethernet, RS232, GPI Trigger

WEIGHT     5lbs. Body only

CONSTRUCTION     Aluminum Alloy

TEMPERATURE RANGES     Operating Range: 0?C to +40?C (32?F to 104?F)
Storage Range: -20?C to +50?C (-4?F to 122?F)
